Prefabricated Inverter Substation

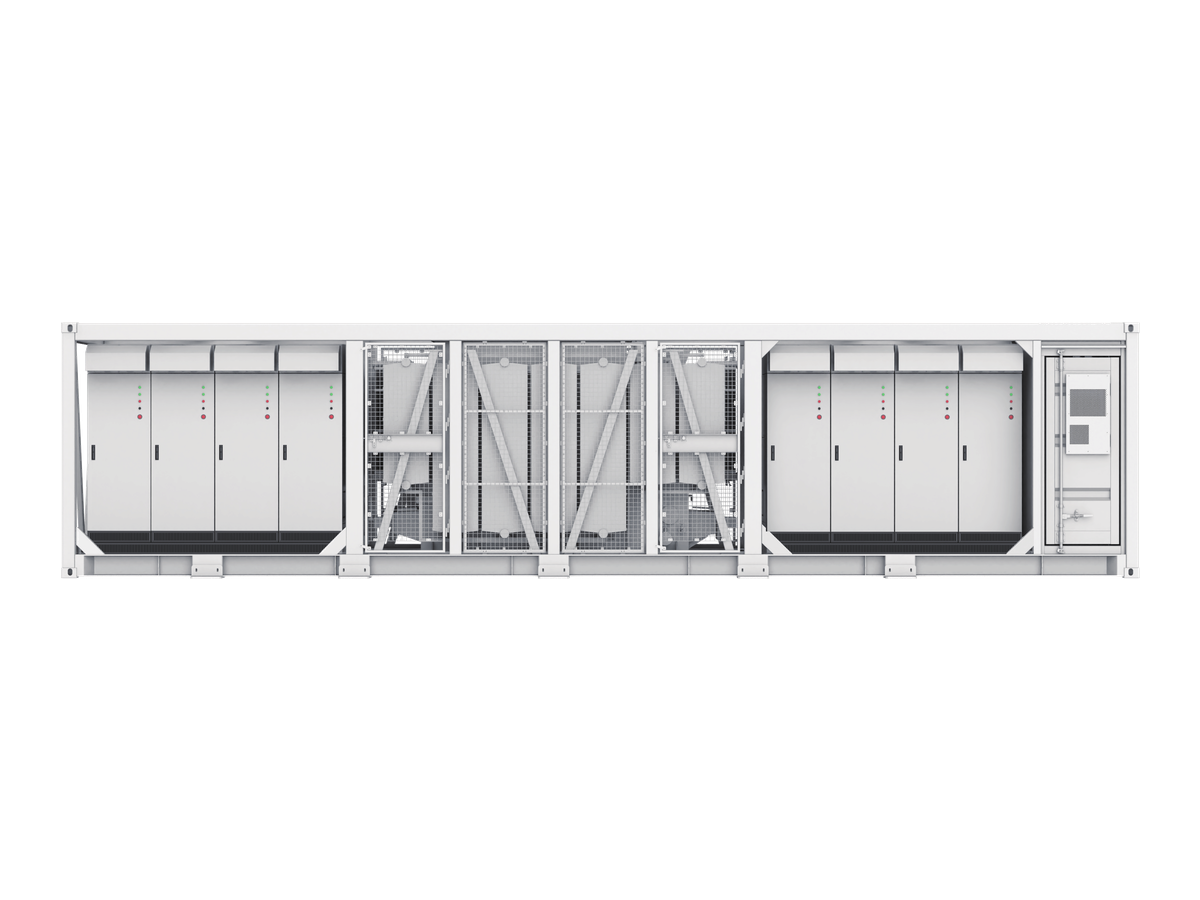

10MW Converter & Step-up Cabin
The largest station in the line: 10,000 kVA of conversion and MV step-up in a single 40-foot cabin, with the PCS, oil-immersed transformer, MV switchgear and auxiliaries pre-installed and pre-tested. 1040–1500 V wide-range DC across 4 or 8 branches, 20–35 kV AC output, islanding and black-start with LVRT and HVRT, and four-quadrant active and reactive power control.
- 10,000 kVA
- 20–35 kV
- 1040–1500 V DC
- IP55
Highlights
10 MW in one cabin
Inverter, oil-immersed transformer and MV switchgear pre-integrated in a 40-foot footprint.
1500 V wide-range DC
1040–1500 V across 4 or 8 branches, up to 2404 A.
Islanding and black-start
With LVRT and HVRT ride-through for code compliance.
Four-quadrant control
Active and reactive power with fast response and ≤ ±1% regulation accuracy.
Specifications
- Model
- KJ-SES4H-10000-MV-EX
- Rated capacity
- 10,000 kVA
- Overload
- 1.1× continuous, 1.8× for 10 s
- AC voltage range
- 20–35 kV
- DC voltage range
- 1040–1500 V
- Rated frequency
- 50 / 60 Hz
- Max inverter efficiency
- 98.5%
- Dimensions (W×H×D)
- 12192 × 2896 × 2438 mm
- Weight
- ≤ 45 t
- Enclosure
- IP55 overall (transformer IP68, PCS IP65)
Show all 29 specifications
- DC branches
- 4 / 8
- Max DC current
- 2404 A / 1202 A
- Current THD
- < 3%
- Transformer
- Oil-immersed, 10,000 kVA @ 45 °C, Dy11y11
- LV AC voltage
- 690 V
- Transformer efficiency
- Tier 2 (EU 548)
- Transformer impedance
- 8%
- Transformer cooling
- ONAN
- MV protection
- Vacuum circuit breaker + microcomputer protection
- Internal arc rating
- 20 kA, 3 s (MV control room)
- Auxiliary transformer
- 50 kVA, 690/400 V, 3-phase 4-wire
- UPS
- Up to 2 kVA, 1 h backup (standard)
- Comms
- RS485, CAN, TCP/IP via gateway
- Corrosion class
- C5 (external mechanical parts)
- PCS cooling
- Air
- Operating temperature
- −25 °C to 60 °C (derating above 45 °C)
- Operating humidity
- 0–95%, non-condensing
- Max elevation
- 1000 m standard
- Regulation accuracy
- ≤ ±1% voltage and current
Full datasheet available on request. Contact our team →
More in Prefabricated Inverter Substation
View all →

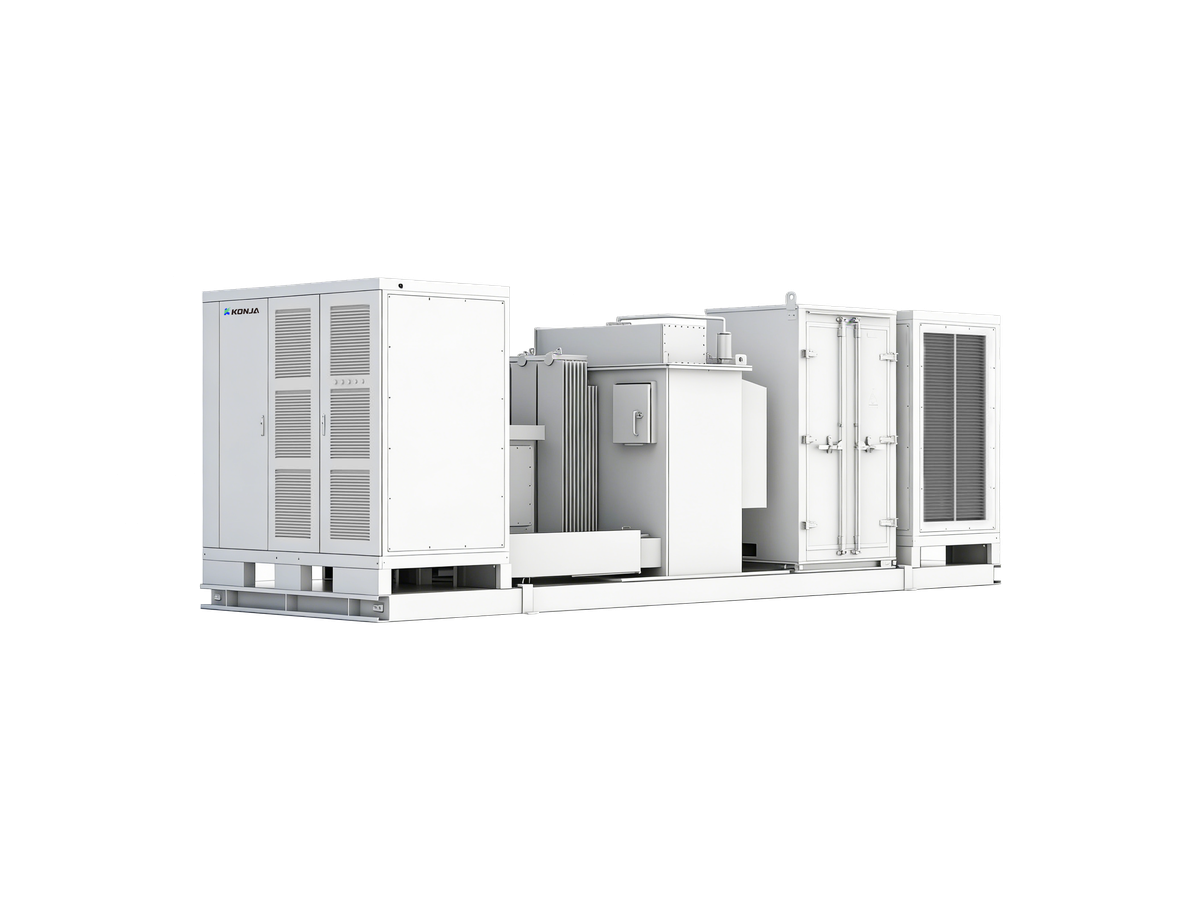

3.45MW Prefabricated Inverter Substation
Inverter + booster in one skid, 1500V DC, multi-branch DC design.
- 3.45 MW
- 1500 V DC
- VSG / PQ / VF
- Black-start

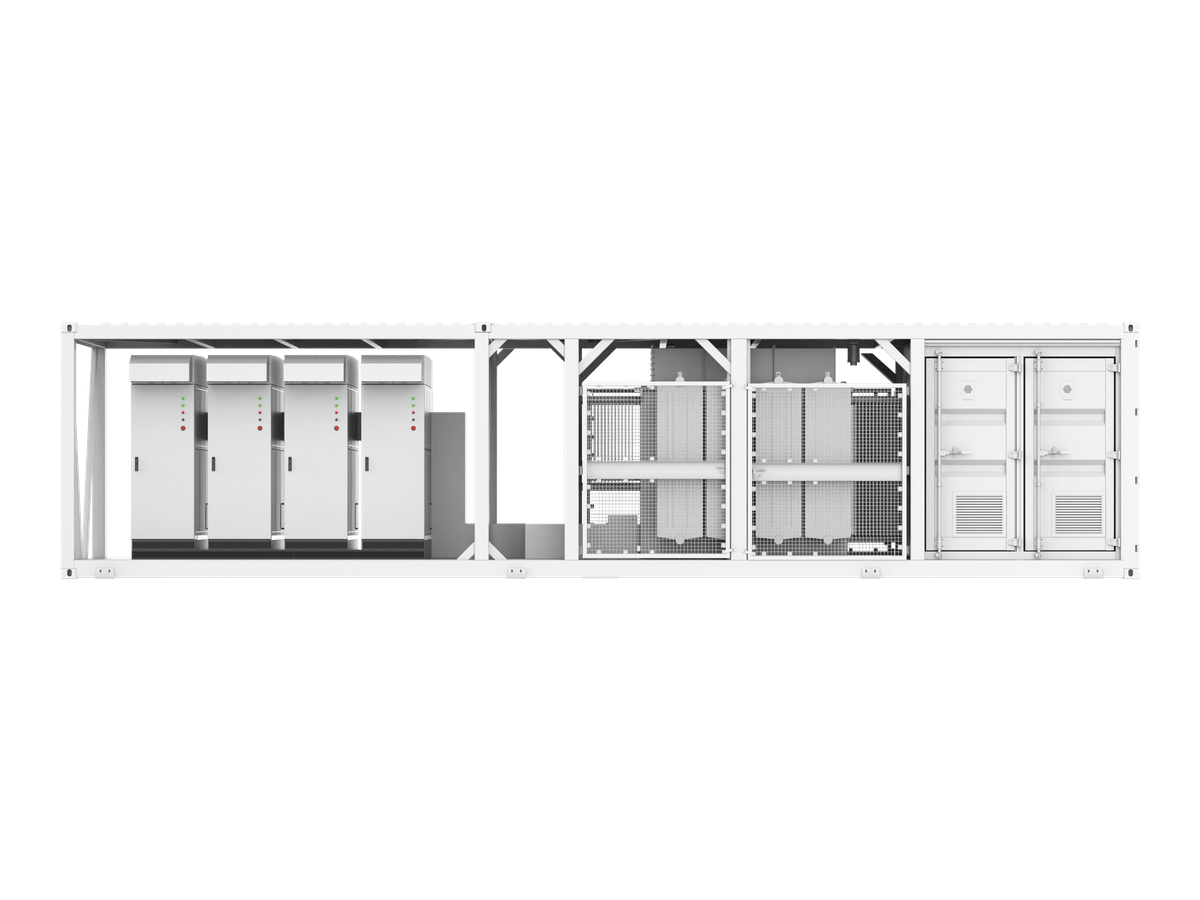

5MW Prefabricated Inverter Substation
