Home > products > Energy Storage Cabinet > KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor

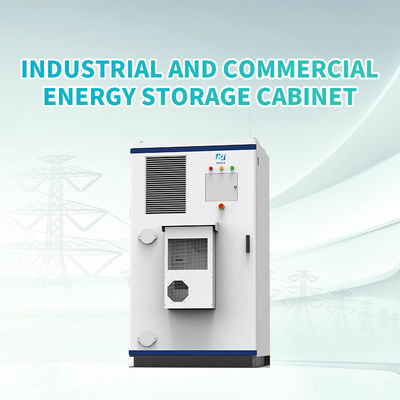

KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor

Product Details

Place of Origin: China

Brand Name: Konja

Certification: GB/T36276 、GB/T34131 、UL1973 、UL9540A 、IEC62619 、UN38.3

Payment & Shipping Terms

Delivery Time: 60 Days

Payment Terms: T/T

Get Best Price
Highlight:

60kw Energy Storage Cabinet Konja

,

Outdoor Energy Storage Cabinet Konja

,

Solar Battery Storage Cabinet Outdoor Konja

Capacity:
120kwh
Rated Power:
60kw
Battery Cell Type:
LFP 3.2V/100Ah
Cooling Type:
Intemal Air Conditioning With Independent Temperature Control
Dimension:
1200× 800× 2100 Mm
Weight:
1800Kg
Depth Of Charge:
80% DOD
Ingress Protection:
IP54
Capacity:
120kwh
Rated Power:
60kw
Battery Cell Type:
LFP 3.2V/100Ah
Cooling Type:
Intemal Air Conditioning With Independent Temperature Control
Dimension:
1200× 800× 2100 Mm
Weight:
1800Kg
Depth Of Charge:
80% DOD
Ingress Protection:
IP54
KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor



KonJa Solar Storage Cabinet Top Brand Battery Cell 120kWh 60kw Outdoor Energy Storage System

Product Description:

KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 0

1.Outdoor Energy Storage Cabinet is a modular, flexible battery system that is easily and cost-effectively scalable from 215kWh tomecawatts. t intearates battery cells, BMS, HVAC, and fire suspension in a high lP outdoor cabinet, which is pre-engineered & pre-testeoto save instal times and costs.

2.The system uses CATL. LiFePO4 chemistry for the highest level of safety, thermal stability, and reliabity.

3.The system enables its users to reduce energy costs and makes the network more resiient by actively managing the timing and profile of theienergy usage through Peak-shaving, load-shifting, etc.

Features:

KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 1
  •


Technical Parameters:

Product Technical Specification
Model 60kW / 120kWh
Battery Cell Type LFP 3.2V/100Ah
Rated capacity 124.8kWh
RatedVoltage( DC) 614.4V
Depth of Charge 80% DOD
Rated Power 60KW
Rated Voltage( AC) 400V AC
Rated Current 87A
Cooling Type IntemalAir Conditioningwith Independent Temperature Control
Ingress Protection IP54
Working Temperature -10~45C
Relative Humidity 5%-95%RH,withoutCondensation
Fire Extinquishing System FM-200(Novec1 23 0 Optional)
Dimension 1200× 800× 2100 mm
Weight 1800Kg

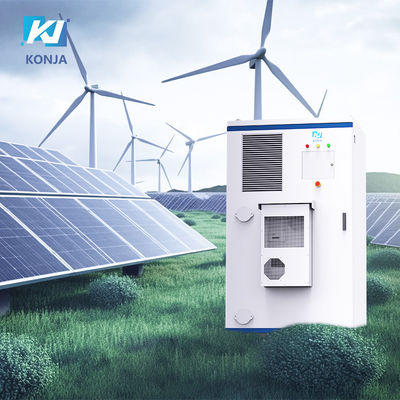

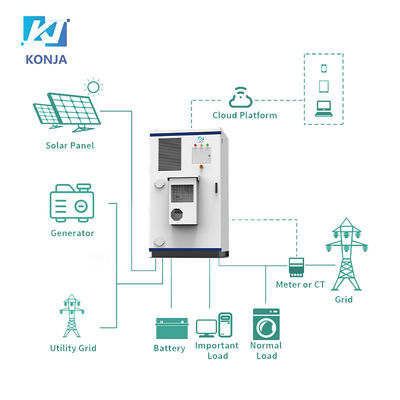

Applications:

KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 2KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 3KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 4

KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 5KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 6KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 7



Packing and Shipping:

1.Batteries and cabinet shipped separately

2.Batteries be packed with carton+wooden.

KonJa All In One 120kWh 60kw Energy Storage Cabinet Solar Battery Storage Cabinet Outdoor 8



FAQ:

1. What are the features and advantages of KonJa Energy Storage Cabinets?
KonJa Energy Storage Cabinets offer the following features and advantages:
Advanced Technology: KonJa Energy Storage Cabinets utilize advanced battery technology and energy management systems to ensure efficient energy storage and release.
Reliability: KonJa Energy Storage Cabinets undergo rigorous testing and quality control, providing excellent stability and reliability.
Safety: KonJa Energy Storage Cabinets incorporate multiple safety protection mechanisms, ensuring reliable operation and preventing potential safety risks.
Flexibility: KonJa Energy Storage Cabinets are designed with scalability and modularity, allowing flexible configuration and upgrades based on customer needs.



2. What are the applicable applications for KonJa Energy Storage Cabinets?
KonJa Energy Storage Cabinets can be widely used in residential, commercial, and industrial sectors for the following applications:
Renewable Energy Storage: Storing renewable energy from solar or wind power sources for self-consumption and reducing reliance on traditional energy sources.
Backup Power: KonJa Energy Storage Cabinets can provide reliable backup power in the event of grid outages or emergencies, ensuring the operation of critical equipment.
Load Shifting: By storing excess electricity during low-demand periods and releasing it during peak demand, Energy Storage Cabinets help balance the power grid and reduce electricity costs.



3. Can KonJa Energy Storage Cabinets be customized?
Yes, KonJa Energy Storage Cabinets can be customized to meet customer requirements. Our professional team will collaborate with customers to design and customize Energy Storage Cabinet solutions based on specific application needs and site limitations.



4. What is the after-sales service for KonJa Energy Storage Cabinets?
KonJa is committed to providing excellent after-sales service. Our customer service team offers prompt response and technical support to address customer inquiries and resolve issues.
