Product Details
Place of Origin: China
Brand Name: KonJa
Certification: CE
Model Number: 1.29MWh
Payment & Shipping Terms
Minimum Order Quantity: 1 pc
Packaging Details: Container
Delivery Time: 55-90 days
Payment Terms: T/T
Weight: |
About 21000kg |
Battery Type: |
Lithium Ion |
Warranty: |
5 Years |
Nominal Energy/kWh: |
1290kWh |
Dimension(LxWxH): |
6058x2438x2896 Mm |
Voltage Range: |
768V |
Weight: |
About 21000kg |
Battery Type: |
Lithium Ion |
Warranty: |
5 Years |
Nominal Energy/kWh: |
1290kWh |
Dimension(LxWxH): |
6058x2438x2896 Mm |
Voltage Range: |
768V |

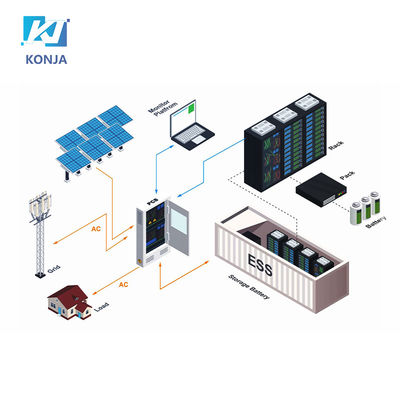

Based on lithium iron phosphate battery(LFP) and power conversion technology, KonJa Energy designed the modular containerized battery energy storage system (BESS), which was successfully used in many scenarios, such as frequency regulation of power plant, peak shifting of user side, and microgrid application with wind power & solar power.
1. Highly modularized design makes it easy to be transported, install, construct, and maintain.
2. Reasonable design enables the system to be operated under various scenarios
3. Battery System:4-level design makes them easy to monitor and control: Cell level, Module level, Rack level, and Container level:
4. BMS: Ensures the battery system runs in a "healthy" condition by monitoring and controlling the current, voltage, temperature, and other relative parameters of each cell, module, rack, and container.
5. Cooling system: Using a set of precision air-conditioners to keep the temperature inside the container around 25 degrees C.
6. Lighting system: including emergency light and lighting, are available in the containers
7. Fire system: FM 200, an advanced automatic fire extinguishing system with an audible and visual alarm, is installed in the container. The container can be hermetically sealed by the automatic shut-down svstem once the fre extinguishing svstem is activated.
| Produ Technical Parameter | |
| Optional Capacity |
2580 kWh
|
| Battery Cell Parameter | LFP-3.2V-280Ah-896 Wh |
| Module Parameter | LFP-51.2V-280Ah-14.336 kWh(1P16S) |
| Rack Parameter | LFP-768V-280Ah-215.04 kWh(1P240S) |
| Container Parameter | LFP-768V-1680Ah-1.29MWh(6P240S) |
| Max. DC Current | 1200A |
| DC Voltage Range | 580~860V DC |
| Charge and Discharge Ratio | 0.5C |
| Cycle Life | 8000 Cycles (70%EOL) |
| BMS Scheme | Active Equalization+ Threelevel Architecture |
| Communication Interface | Ethernet/RS-485/CAN |
| communication Protocol | Modbus-TCP/IEC61 8 50/ 104 |
| Temperature Control Scheme | Intelligent Variable Frequency Air-Cooling |
| Fire Extinguishing Scheme | Gas/ Smoke/ TemperatureDetection!HeptafluoropropanelWater1Perfluorohexanone( Optional)+Active Air Exhaust |
| Rated AC Voltage | 400 VAC (3P4W) |
| Rated AC Power | 630 kW |
| Max.AC Current | 2000A |
| Power Factor | 0.99(Adjustable Extent- 1~+ 1) |
| Rated Working Frequency | 50Hz/60Hz( Settable) |
| Max. Harmonic Distortion | <3 %( Rated Power) |
| DC Component | <0.5% |
| Insulation Resistance | >3 MQ |
| Altitude | <5000m(>3000m Capacity Reduction) |
| Allowable Ambient Temperature | -40~+55°C |
| Allowable Relative Humidity | 0 .-95% Rh( without Condensation) |
| Ingress Protection | IP55 |
| Corrosion- proof Grade | C4( C5 Optional) |
| 6048*2438*2591 mm | |
Konja Container Energy Storage System is an off-grid energy storage system with a nominal energy of up to 2000 kWh. It is also known as a containerised energy storage system, with a voltage range of 783-945V. The weight of the system is less than 26 tons and the battery type is lithium ion, offering a 5-year warranty. The minimum order quantity is 10 and the delivery time is 60 days. The payment terms are T/T.
This energy storage system is suitable for a wide range of applications, such as residential, commercial, or industrial power grids. It can provide reliable and efficient electricity for remote areas, while it is also suitable for peak shaving, frequency regulation, and grid stability and integration. It helps to reduce the reliance on diesel generators, while also reducing the overall cost of electricity. The system can be easily installed and maintained, saving both time and money.
Konja Container Energy Storage System offers an excellent solution for those who are looking to have reliable and efficient electricity in areas which are not connected to the main power grid. It is a cost-effective and reliable solution for those who need a reliable source of electricity.
The Container Energy Storage System is packaged according to international shipping standards to ensure safe delivery. The system is secured to a pallet and protected with a waterproof shipping cover. The package is then sealed with plastic shrink wrap and reinforced with heavy-duty strapping for shipping.
