Home > products > Residential Energy Storage System > KonJa Hybrid Inverter All In One Lithium Battery 51.2V 5.12kWh 10.24kWh 15.36kWh Residential Battery With LED Screen

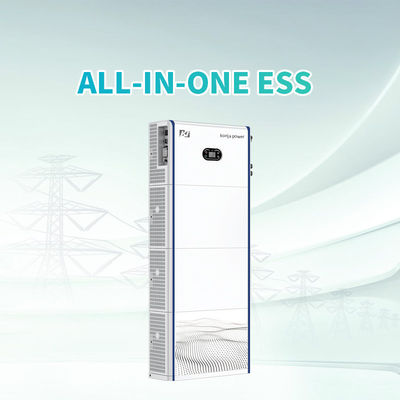

KonJa Hybrid Inverter All In One Lithium Battery 51.2V 5.12kWh 10.24kWh 15.36kWh Residential Battery With LED Screen

Product Details

Place of Origin: China

Brand Name: Konja

Certification: CE

Payment & Shipping Terms

Minimum Order Quantity: 30 pcs

Packaging Details: Carton+Wooden

Delivery Time: 7-30 days

Payment Terms: T/T

Supply Ability: 1000Pcs Per Month

Get Best Price
Highlight:

Hybrid Inverter All In One Lithium Battery

,

All In One Lithium Battery 51.2V

,

Residential Battery With LED Screen

Voltage:
51.2V
Capacity:
100Ah 200Ah 300Ah
Weight:
50kg
IP LEVEL:
IP20
Cycle Life:
6000 Cycles @ 0.2C 25°C 80%D.O.D
Warranty:
5 Years
Voltage:
51.2V
Capacity:
100Ah 200Ah 300Ah
Weight:
50kg
IP LEVEL:
IP20
Cycle Life:
6000 Cycles @ 0.2C 25°C 80%D.O.D
Warranty:
5 Years
KonJa Hybrid Inverter All In One Lithium Battery 51.2V 5.12kWh 10.24kWh 15.36kWh Residential Battery With LED Screen



KonJa Power All In One With Hybrid Inverter 51.2V 5.12kWh 10.24kWh 15.36kWh For Residential Battery With LED Screen

Product Description:

1. Our Stackable Battery Pack is a reliable and effective stackable power source that can be used for a variety of applications.



2. It is designed to provide high capacity and cycle life of up to 6000 cycles @ 0.2C 25°C 80%D.O.D.



3. The battery and inverter weight are only 90-190kg, and is available in capacities of 100Ah, 200Ah, 300Ah.



4. It is IP20 rated, but it can be with IP65 making it suitable for outdoor use in all weather conditions.



5. With a 5 year warranty, you can be sure that this stackable power source will provide you with long-lasting and reliable service.

Features:

1.Product Name: Stackable Battery Pack



2.Capacity: 100Ah 200Ah 300Ah



3.Cycle life: 6000 cycles @ 0.2C 25°C 80%D.O.D



4.Weight: 90kg-190kg



5.Warranty:  5 Years



6. Voltage: 51.2V



7.Special Features: Stackable Battery Module, Rechargeable Battery Pack, Stackable Battery Module



Technical Parameters:

Product Attribute Technical Parameter
Battery type
LFP
Battery distribution unit
GPOWER-B
Battery module
5.12KWh
Number of battery modules
1 2 3
Battery total energy
5.12kWh
10.24kWh
15.36kWh
Nominal capacity
100Ah
200Ah
300Ah
Rated voltage
51.2V
Voltage range for full load
44.8-58.4V
Max. Discharge Current [A]
100A
200A
250A
Rated charge/discharge current
20A
40A
60A
Degree of protection
IP20
Ambient temperature range
-20°C ~ 60°C
Allowable relative humidity range
5~95%
Max. operating altitude
2000 m
Installation
Floor stand
Cooling
Natural
Display
LED indicators
Communication
CAN/RS485/RS232
Certificates
IEC62619, TUV, ROHS, UN38.3, CEI, VDE, MSDS,CE Standard
Battery Module
Battery module energy
5.12kWh
Standard charge and discharge current
50A
Dimension
W640*D470*H210mm
Weight
50KG


Applications:

KonJa Power Stackable Battery Module is designed to provide high-capacity battery packs for more efficient energy storage. With a nominal voltage of 51.2V, the lithium-ion cells offer long-term durability with capacity of 100Ah, 200Ah, 300Ah. The battery pack has an IP20 level of protection to ensure safety and is available with a 5 years warranty. With a weight of 50kg, the Konja Stackable Battery Module is able to store more energy than traditional battery packs while being easily stackable. With minimum order quantity of 30 pcs and delivery time of 7-30 days, the supply ability is 1000Pcs per month. The product comes in a carton and wooden packaging. KonJa Power Stackable Battery Module is perfect for those who need high-capacity and long-term durability battery packs.



Packing and Shipping:

Packaging and Shipping
KonJa Hybrid Inverter All In One Lithium Battery 51.2V 5.12kWh 10.24kWh 15.36kWh Residential Battery With LED Screen 0

The Stackable Battery Pack will be packaged in a box made of corrugated cardboard. It will be secured with bubble wrap and placed inside of a larger box for shipping. The larger box will also be made of corrugated cardboard and will be sealed with packing tape. There will be a label on the box with the product name, address, and other shipping information.



FAQ:

Q&A
  • Q: What is the brand name of the Stackable Battery Pack?

    A: The brand name is KonJa.

  • Q: Where is the Stackable Battery Pack manufactured?

    A: The Stackable Battery Pack is manufactured in China.

  • Q: What is the minimum order quantity?

    A: The minimum order quantity is 30 pcs.

  • Q: How will the Stackable Battery Pack be packaged?

    A: The Stackable Battery Pack will be packaged in a carton and wooden box.

  • Q: How long will delivery take?

    A: Delivery will take 7-30 days.

  • Q: What payment terms are available?

    A: Payment terms are T/T.

  • Q: How many Stackable Battery Pack can be supplied per month?

    A: We can supply up to 1000Pcs per month.
