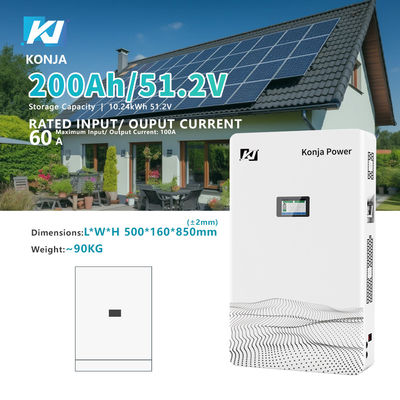

KonJa 51.2V 200Ah 10.24kWh Household Wall Mounted Storage Battery With 5 Years' Warranty

Product Details

Place of Origin: China

Brand Name: Konja

Certification: CE, UL.TUV, IEC, ROHS, UN38.3.MSDS

Payment & Shipping Terms

Minimum Order Quantity: 50

Packaging Details: Carton+Wooden

Delivery Time: 7-30 days

Payment Terms: T/T

Supply Ability: 1000Pcs Per Month

Get Best Price
Highlight:

51.2v 200Ah Wall Mounted Solar Battery

,

Wall Mounted Solar Battery 10.24kWh

,

10.24kWh Wall Mounted LifePO4 Battery

Battery Type:
LiFePO4
Voltage:
51.2V
Capacity:
200Ah
Size:
500*160*850 Mm
Weight:
90kg
IP Level:
IP 20
Cycle Life:
More Than 6000 Cycles @25℃ 0.2C 100% DOD
Warranty:
5 Years
Battery Type:
LiFePO4
Voltage:
51.2V
Capacity:
200Ah
Size:
500*160*850 Mm
Weight:
90kg
IP Level:
IP 20
Cycle Life:
More Than 6000 Cycles @25℃ 0.2C 100% DOD
Warranty:
5 Years
KonJa 51.2V 200Ah 10.24kWh Household Wall Mounted Storage Battery With 5 Years' Warranty



KonJa 51.2V 200Ah 10.24kWh Household Wall Mounted Storage Battery With 5 Years' Warranty

Product Description:

1. The Wall-Mounted-Lifepo4-Rechargeable-Battery is a safe and reliable Wall-Mounted-Li-Ion-Battery, with a Battery-Type LiFePO4 and Capacity of 100Ah 200Ah 300Ah.



2. It has superior performance and a Voltage of 48V, and it has been approved by the major international safety Certification, including CE, UL, TUV, IEC, ROHS, UN38.3 and MSDS.



3.Our Wall-Mounted-Lithium-Battery also has excellent IP-Level, IP-65.



Features:

1. wall-mounted or floor-mounted.



2. Real time online monitoring system battery status, intelligent warning.



3. Covering all mainstream protocols and matching most mainstream.



4. 4 times long static and 8 consistency screening make the battery more durable.



5. Nano-coating and self-healing technology construct the LPF channel to add a firewall to the battery.



Technical Parameters:

BASIC SPECIFICATION
Capacity 25.6V 100AH (100A) 51.2V 100AH(100A) 51.2V 200AH (200A)
Battery Total Energy(kwh) 2.5 5.12 10.24
Rated Energy(kw) 2.5 5 10
Peak Energy(kw) 2.75 5.5 11
DC Rated Voltage(V) 25.6 51.2 51.2
Allowable BMS Load Current(A) 100 100 200
Battery Voltage Range(DC) 22.4~29.2 44.8~58.4 44.8-58.4
single phase Inerter Operating voltage Range(V) 200~240 200~240 200~240
three phase lnerter Operating voltage Range (V) 340~460 340~460 340~460
Communication
Display SOC status indication LED indicator screen
Protocol RS485 /RS232/ CAN (Series parallel connection with either option)
Specifics
Dimension (L xW x H) 370*160*400 mm 370*160*600 mm 500*160*850 mm
N.W ( Accessories Included)

24kg

45kg 90kg
Installation wall-mounted or floor-mounted
Working Temperature -20°C  ~ +55°C
Maximum Working Aititude 4000 m (≥2000m derating)
Installation Enwironment Indoor & outdoor scenario
Working Relative Humidity 5%-95%
Heat Dissioation IP20
Cell LiFeP04
Expansibility A max of 16 modules can be used in parallel
Matching Inverter Most current mainstream inverters (lithium)
Package Dimension(carton) 420*200*450 mm 650*420*210 mm 920*570*340 mm


Applications:

Konja's Wall Mounted Lifepo4 Battery is a reliable, easy to install and safe solution for your renewable energy needs. With an IP 65 rating, it is designed to work in all weather conditions, making it suitable for both indoor and outdoor use. The battery comes in 100Ah, 200Ah and 300Ah capacities, and is certified by CE, UL, TUV, IEC, ROHS, UN38.3 and MSDS. Its 48V voltage is well suited for a wide range of applications. The minimal order requirement is 50 pieces, and it is supplied in carton and wooden boxes for shipping and safe storage.

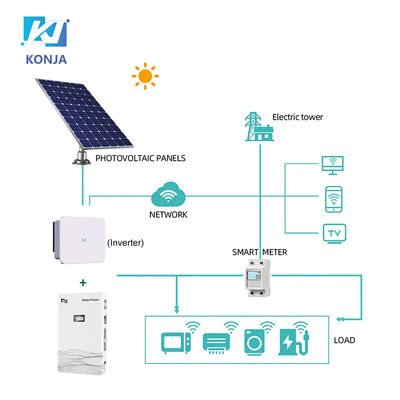

The Lifepo4 wall-mounted lithium battery is an ideal choice for a variety of installations, from residential homes to industrial units. It is a cost-effective solution for off-grid power applications, providing reliable and efficient energy storage. It is also the perfect choice for solar and wind energy installations, allowing the user to monitor and manage power usage. The battery is also a great choice for telecommunications and telecoms applications, providing reliable and long-lasting power.

Konja's wall-mounted Lifepo4 battery is designed for easy installation and maintenance. With its durable and lightweight construction, it can be easily mounted on walls and other surfaces. The user-friendly design also makes it easy to use and operate, with minimal maintenance required. The battery also comes with a 5-year warranty, giving users peace of mind when investing in the product.

Konja's wall-mounted lithium battery is a long-lasting, reliable and efficient power source for your renewable energy needs. With its IP 65 rating, it is suitable for both indoor and outdoor use, and its high capacity makes it suitable for a range of applications. The battery is also certified by CE, UL, TUV, IEC, ROHS, UN38.3 and MSDS, ensuring safety and quality. Its 48V voltage and 5-year warranty make it an excellent choice for a variety of applications. The battery is supplied in carton and wooden boxes for shipping and safe storage.



Packing and Shipping:

Packaging and Shipping Wall Mounted Lifepo4 Battery

The wall mounted Lifepo4 battery is shipped in a cardboard box. Inside the box, the battery is secured with bubble wrap and foam to prevent damage during shipping.

The box is labeled with the product name, item number, and shipping address. The box is also marked with a "Fragile" sticker, indicating that the package should be handled with care during transit.

The box is then sealed with packing tape for extra protection against moisture and dust.



FAQ:

Q1: What is the brand name of this Wall Mounted Lifepo4 Battery?

A1: The brand name of this Wall Mounted Lifepo4 Battery is Konja.

Q2: What is the model number of this Wall Mounted Lifepo4 Battery?

A2: The model number of this Wall Mounted Lifepo4 Battery is KP48.

Q3: Where is this Wall Mounted Lifepo4 Battery made?

A3: This Wall Mounted Lifepo4 Battery is made in China.

Q4: What is the minimum order quantity of this Wall Mounted Lifepo4 Battery?

A4: The minimum order quantity of this Wall Mounted Lifepo4 Battery is 120.

Q5: What kind of packaging does the Wall Mounted Lifepo4 Battery come in?

A5: The Wall Mounted Lifepo4 Battery comes in carton and wooden packaging.
