Product Details
Place of Origin: China
Brand Name: Konja
Certification: CE, UL.TUV, IEC, ROHS, UN38.3.MSDS
Payment & Shipping Terms
Minimum Order Quantity: 100
Packaging Details: Carton+Wooden
Delivery Time: 30-40 Days
Payment Terms: T/T
Supply Ability: 1000Pcs Per Month
Battery Type: |
Sodium Ion Battery |
Voltage: |
51.2V |
Capacity: |
5.7kWh |
Size: |
405*156*886mm |
Weight: |
65kg |
IP Level: |
IP54 |
Cycle Life: |
>6000 Cycles @ 1C 100%D.O.D |
Warranty: |
5 Years |
Battery Type: |
Sodium Ion Battery |
Voltage: |
51.2V |
Capacity: |
5.7kWh |
Size: |
405*156*886mm |
Weight: |
65kg |
IP Level: |
IP54 |
Cycle Life: |
>6000 Cycles @ 1C 100%D.O.D |
Warranty: |
5 Years |

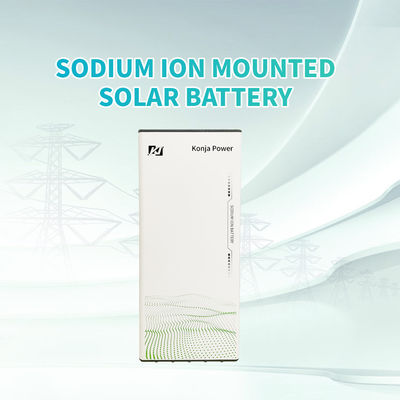

KonJa Home Rechargeable Sodium ion battery 51.2V 37Ah 5.7kWh Wall Mounted Solar Battery With 5 Warranty Years
1. The 51.2V Wall-Mounted Solar Battery is a powerful and efficient battery solution that is designed to be wall-fitted.
2. With a capacity of 37Ah and a weight of 65kg, this wall-mounted battery is a go-to option for those who need a powerful and reliable energy storage option.
3. The size of this battery is 886*405*156mm, and it is powered by a Sodium-Iron battery, making it one of the most reliable and robust energy storage solutions available.
4. With its 51.2V voltage, this wall battery is an ideal choice for those who are looking for a powerful and efficient energy storage solution.
1. Product Name: Wall Mounted Solar Battery
2. Warranty: 5 Years
3. 51.2V Wall Battery with 5-year Warranty
4. 51.2V Wall-Mounted Battery with 5-year Warranty
5. Voltage: 51.2V
6. Size: 1060*720*440mm
7. Capacity: 37Ah
8. Battery Type: Sodium ion battery
Nominal voltage | 51.2v | |
Nominal capacity | 5.7kWh | |

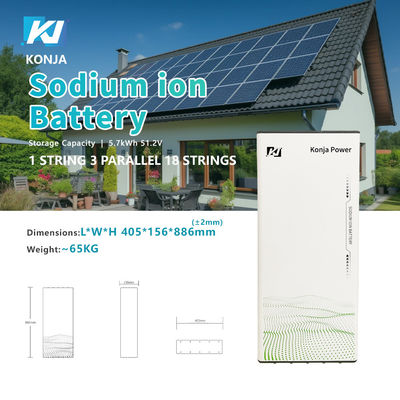

Dimensions | Length | 405±2mm |
Width | 156±2mm | |
Height | 886±2mm | |
Approx. net weight | Sodium ion battery | |
Approx. gross weight | 65kg | |
Bectrical Parameters(25℃)Rated Voltage | 70kg | |
Rated Capacity(Cs] | 70kg | |
Energy | 51.2V Wall-Mounted Battery | |
Months Self Discharge | <3% | |
Charge Efficiency | 99.5%@ 0.2C | |
Discharge Efficiency | 96-99%@ 1C | |
Termminal Diameter | M8 | |
Internal resistance (Fully charged, 25C) | ≤200 mΩ | |
Cycle life | >6000 cycles @ 1C 100%D.O.D | |
Capacity affected by temperature |
40℃ | 101% |
25℃ | 100% | |
0℃ | 90% | |
-10℃ | 75% | |
Nominal operating temperature | 25℃ ± 3℃ (77℉± 5℉) | |
Discharger temperature range | -20 C- 60'C (-4℉-140℉) | |
Charger temperature range | 0℃-45℃(2℉- 113℉) | |
Storage temperature range | 0℃-40℃(52℉-104℉) | |
Water Dust Resistance | IP54 | |
Charge Voltage | 57V | |
Standard Charge Mode(25'C+2'C, <75baiRH) |
0.2CA ConstantCurrentto 57V,then Constant Voltage 57V ,until the cunentdroosto0.02CA ,before use,rest30 minutes |
|
Charge Current | 60A | |
Maximum Charge Current | 100A | |
Charge Cut off Voltage | 57V | |
Continuous Discharge Current | 100A | |
Maximum Pulse Current | 150A (<1S) | |
Discharge Cut OffVoltage | 46V | |
Communicate Protocol (optional) | RS485/RS232/CAN | |
soc (optional) | Screen/LED/Pc Software | |
Application connection | 1String 3 parallel | |
Mechanical | 18 Strings | |
Cell | Metal | |
The dimension ofwooden package (mm) | 1060*720*440 |
Konja's 51.2V Wall-Mounted Solar Battery is a state-of-the-art battery solution for residential and commercial applications. With a capacity of 300Ah, a cycle life of up to 6000 times, and a weight of 156kg, it is designed to provide reliable and efficient power supply to meet all your needs. The battery's Sodium-Iron technology ensures that it is safe to use and provides high performance for a long period of time. Moreover, the wall-mounted design makes it easy to install and the battery can be conveniently placed in any space.
The minimum order quantity for this 51.2V Wall-Mounted Solar Battery is 120, and it is delivered in a carton and wooden packaging. Furthermore, the delivery time is 30-40 days and payment terms are T/T. Konja also offers a Supply Ability of 1000Pcs per month, ensuring that you can get the battery when you need it.
Choose Konja's 51.2V Wall-Mounted Solar Battery for your residential and commercial needs. It is an efficient and reliable power source that is easy to install and provides long-lasting performance. Get the power you need with this safe and secure battery solution.
Wall Mounted Solar Battery is carefully packaged to ensure that the product arrives in perfect condition.
The product is shipped in a corrugated cardboard box with appropriate cushioning material to protect the product from damage during transit.
The package is labeled with the product name and the shipping address.
